Football Turf Construction in India: A Complete Guide to Design, Materials & Installation
Football turf construction in India now reaches school grounds, rooftops, academies and pay and play arenas in every major city. Whether you plan a 5 a side box or a full 11 a side pitch, what lies under the grass decides how the field plays, drains and lasts. What is football turf construction? It is the process of building an artificial football pitch from the ground up: surveying the site, compacting the sub grade, laying drainage and a stone base, levelling, adding an optional shock pad, installing the turf carpet and filling it with infill. This guide covers pitch sizes, planning, layers, materials, the ten step installation, cost in India and how to choose football turf contractors. Use it to brief them with confidence.
KEY TAKEAWAYS
- Pitch sizes: 5 a side about 36.5 × 27.5 m, 7 a side about 55 × 36.5 m, 11 a side 105 × 68 m (FIFA recommended).
- Layers: sub grade, stone sub base, levelling layer, optional shock pad, turf carpet and infill.
- Pile height: 40 to 60 mm is typical, usually PE monofilament fibre.
- Base first: base and drainage decide long term performance. Slope about 0.5 to 1%.
- Timeline: surface installation takes about 4 to 6 weeks for a full pitch once the base is ready.
- Cost drivers: base work, fibre quality, shock pad, certification, fencing and lights.
What Is Football Turf Construction?
People use three terms as if they meant one job. They do not.
- Football turf installation: laying and fixing the carpet on a finished base.
- Football turf construction: the full build, from survey and base to carpet and infill.
- Football ground construction: the wider project, adding fencing, lights, goalposts and dugouts.
Natural grass vs artificial turf
| Factor | Natural Grass | Artificial Turf |
|---|---|---|
| Playable Time | Weather dependent, needs rest | Most hours, all seasons |
| Upkeep | Mowing, watering, reseeding | Brushing and infill top ups |
| Upfront Cost | Lower | Higher |
| Wear | Patchy under heavy use | Even. 8 to 10 years for quality turf |
Types of Formats and Pitch Sizes
5 a Side and 7 a Side Turf
Most Indian turfs sit on compact plots. Commercial 5 a side turfs run about 5,000 to 6,500 sq ft and 7 a side turfs 10,000 to 12,000 sq ft.
9 a Side Turf
A step up for academies and youth leagues, at about 73 × 46 m.
11 a Side Turf (FIFA Recommended Size)
FIFA recommends 105 × 68 m, or 7,140 sq m. IFAB laws allow 90 to 120 m by 45 to 90 m, so confirm the range your competition needs.
| Format | Dimensions | Approx. Area |
|---|---|---|
| 5 a side | 36.5 × 27.5 m (40 × 30 yd) | About 1,003 sq m |
| 7 a side | 55 × 36.5 m (60 × 40 yd) | About 2,007 sq m |
| 9 a side | 73 × 46 m (80 × 50 yd) | About 3,344 sq m |
| 11 a side | 105 × 68 m | 7,140 sq m |
Rooftop and Compact Turfs
Rooftop turfs usually run 3,000 to 6,000 sq ft. They need a structural load check and 30 to 40 ft safety nets.
Design and Planning
Site Selection and Orientation
Choose a flat plot with road access, power and water. Align the long axis roughly north south to avoid low sun glare.
Surveys and Soil Testing
A topographic survey and soil test reveal levels and bearing capacity. Weak or black cotton soil needs stabilising first.
Slope and Drainage
Grade the pitch about 0.5 to 1% from the centreline outwards, with a perimeter drain. Trapped water lifts seams.
Fencing, Netting, Lighting and Dugouts
These turn a turf into a venue. Plan footings and cable routes during civil work.
Local Approvals
Check land use, building, fire and electrical approvals, plus noise limits near homes.
Football Turf Layers
- Compacted sub grade: about 95% Proctor density.
- Stone sub base: about 150 mm of open graded stone.
- Levelling layer: fine stone or dust, laser graded.
- Shock pad (optional): about 10 mm of closed cell foam.
- Turf carpet: fibres tufted into a coated backing.
- Infill: about 15 mm of sand, rubber or organic granules.
Football Turf Materials
Fibers
PE monofilament is the most common choice. Polypropylene suits budget fields and nylon suits high wear zones.
Pile Height
Football turf usually has a 40 to 60 mm pile. Taller pile holds more infill and feels softer.
Backing and Coating
Primary and secondary backing, sealed with latex or PU, locks each tuft in place. Weak coating means shedding fibres.
Infill Options
Sand, rubber and organic infills change cushioning and heat.
Shock Pads and Drainage Layers
Shock pads cut injury risk. Pair them with layers that drain faster than 300 mm per hour.
FIFA Quality and Quality Pro
FIFA Quality suits community play and Quality Pro suits professional matches. Both need lab and field tests, so check FIFA’s public register. Our FIFA turf vs regular turf guide explains more.
Ask every turf supplier
- Is this exact product on FIFA’s public list?
- What fibre, pile height and backing weight do you quote?
- How much infill per sq m, and which type?
- What do the warranty and test reports cover?
Football Turf Installation Process
Football turf installation follows ten steps in one fixed order.
1. Site Clearing and Marking
Clear the site, then mark boundaries, levels and drain lines from the approved drawing.
2. Excavation and Compaction
Excavate to formation level and compact the sub grade to about 95% Proctor density.
3. Drainage
Lay perimeter French drains and outlets. Check falls before any base goes on.
4. Sub Base
Spread and compact about 150 mm of open graded stone in layers.
5. Levelling and Laser Grading
Spread the fine layer and laser grade it to the specified falls.
6. Shock Pad
Roll out the pad, tape the joints and check for gaps.
7. Turf Rolling, Cutting and Seaming
Roll out the carpet, trim it and join seams with tape and adhesive.
8. Line Marking and Goalposts
Cut in or paint lines for the format, then fix goalposts.
9. Infill Spreading and Brushing
Spread infill in passes and brush fibres upright after each pass.

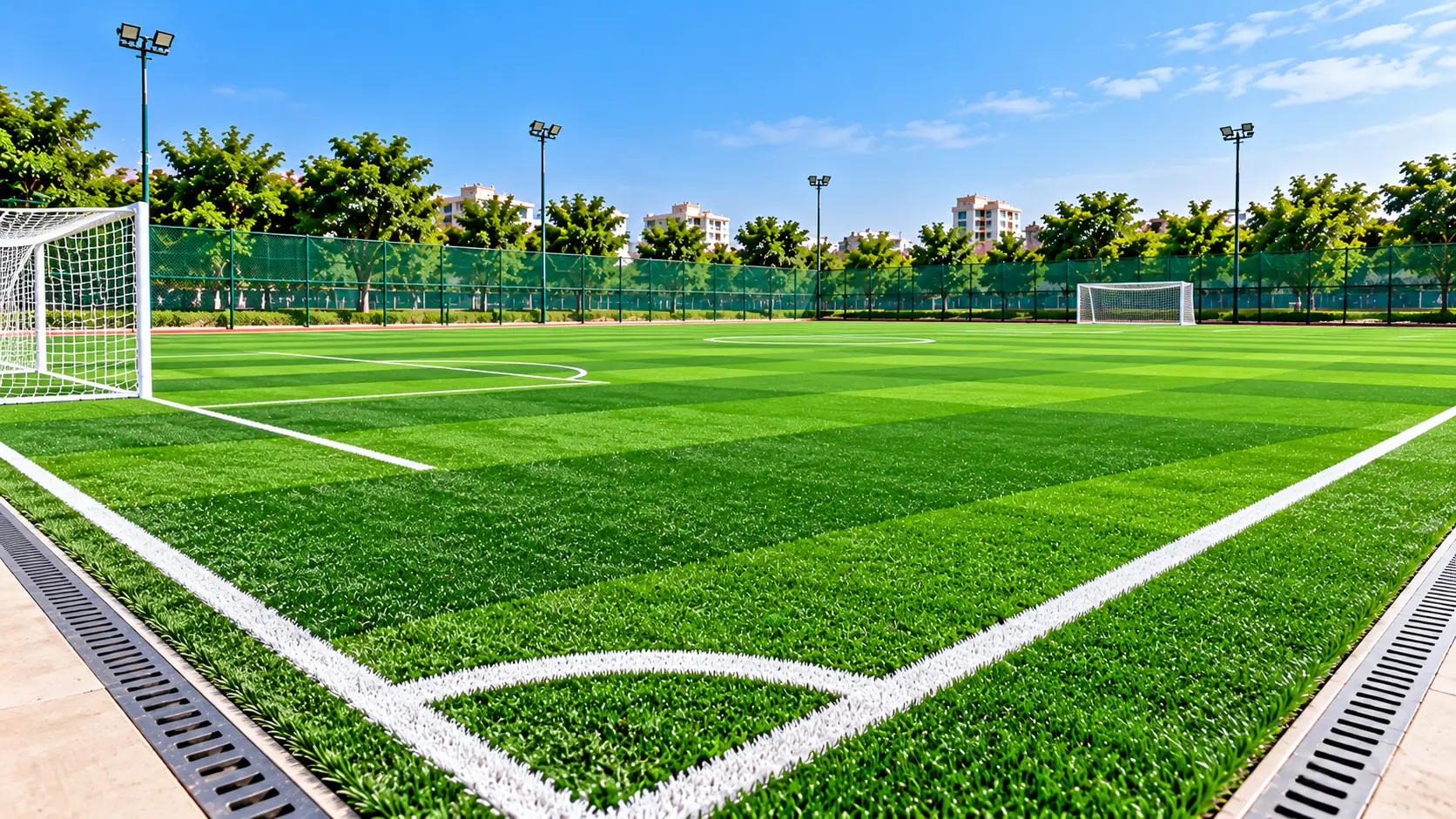

10. Final Inspection and Handover
Check levels, seams, infill depth and drainage, then hand over with warranty papers.
Planning timeline by pitch size
| Format | Planning Range |
|---|---|
| 5 a side | 3 to 5 weeks |
| 7 a side | 5 to 8 weeks |
| 11 a side | 10 to 16 weeks (surface installation alone about 4 to 6 weeks) |
Conservative ranges including civil work. Weather and approvals can move them. Our 20,000+ sq ft turf and courts project at Shridevi Institutions took 12 weeks.
Football Turf Cost in India
- Base condition, soil stabilisation and drainage
- Fibre, pile height and backing quality
- Shock pad and infill choice
- FIFA certification, which adds roughly 15 to 30% to surface cost
- Fencing, lights and goalposts
| Item | Indicative Range |
|---|---|
| Turf supply only | Rs 65 to 150 per sq ft |
| Full construction with base | Rs 110 to 320 per sq ft |
| 5 a side (about 6,000 sq ft) | Rs 10 to 18 lakh |
| 7 a side (about 12,000 sq ft) | Rs 19 to 36 lakh |
| Full 11 a side FIFA Quality ground | Rs 1.2 to 2.4 crore |
Indicative 2026 ranges. The 5 and 7 a side totals assume Rs 160 to 300 per sq ft, excluding fencing and lights. The 11 a side figure includes both. Fully equipped box turfs cost more.
Ongoing costs: brushing, infill top ups and drainage checks. Every Sports Habitat project includes 12 months of complimentary maintenance. Share your plot size for a costed estimate.
How to Choose Football Turf Contractors
- Finished football turf projects you can visit
- Civil, drainage and surfacing handled by one team
- Product certificates and a field test plan
- Written warranty and maintenance terms
- A quote that separates base, turf, infill and extras
Questions for a site visit
- What base depth and stone grade did you use here?
- How does water leave this pitch?
- How has this turf worn since installation?
- Who maintains it now?
Speak to Our Football Turf Construction Team
Our projects span Bengaluru, Tumakuru and Mysuru. Tell us your city and we will plan a site visit.
→ Speak to Our TeamWhy Choose The Sports Habitat for Football Turf Construction
- 12,000 sq ft of FIFA compliant 7 a side turf at Shridevi Institutions, convertible to two 5 a side pitches, on stabilised red soil with a perimeter French drain.
- 10,000 sq ft of FIFA compliant turf at Ekya School, Byrathi.
- CAD layouts, laser levelling and sub base testing under one turnkey contract.
- 12 months of complimentary maintenance, with optional AMC.
Conclusion
A turf is only as good as what lies beneath it. Get the base, drainage and levelling right and the surface can last for years.
Frequently Asked Questions
Turf alone costs about Rs 65,000 to 1.5 lakh. With a proper base, about Rs 1.6 to 3 lakh.
Roughly Rs 10 to 18 lakh for 5 a side and Rs 19 to 36 lakh for 7 a side, before fencing and lights.
About Rs 65 to 150 per sq ft for turf only and Rs 110 to 320 per sq ft built with a base.
Synthetic fibres, usually PE, are tufted into a coated backing, then laid over a prepared base and filled with infill.
Certification adds roughly 15 to 30% to surface cost. A full FIFA Quality ground runs Rs 1.2 to 2.4 crore.
No. It is synthetic fibre designed to play like grass.
No single firm suits every project. Judge portfolio, base skills, certified materials and maintenance support.
No single size. Commercial turfs are 5 a side and 7 a side. A full pitch is 105 × 68 m.
About 3 to 5 weeks for 5 a side and up to 16 weeks for a full pitch, civil work included.
For heavy, all weather use, yes. Natural grass costs less upfront but needs rest, water and mowing.
Shortlist firms with finished turfs in your city, visit one and ask about base, drainage and warranty.
About 5,000 to 6,500 sq ft for 5 a side and 10,000 to 12,000 sq ft for 7 a side.
Regular brushing, annual infill top ups and clear drains. Skipped upkeep wears the surface out early.
